Product Details:
|
| Electrical Source: | 220 V / 50 Hz | Load Cell Output: | 2.0±0.002MV/V |
|---|---|---|---|
| Capacity: | 0.05~250 Tph | Weighing Type: | Continuous Or Intermittent |
| Application: | Industrial Scales, Commercial Scale, Special Scales | Key Point: | Easy To Operate |
| HS Code: | 84741000 | Operating Temperature: | -10~50℃ |
| Highlight: | 150Tph Conveyor Belt Weigher,150Tph conveyor belt scale,150Tph weight scale conveyor |
||
Belt Scale Conveyor In Sea Ports Industry For Traffic Transportation , CE Certification
Brief Introduction

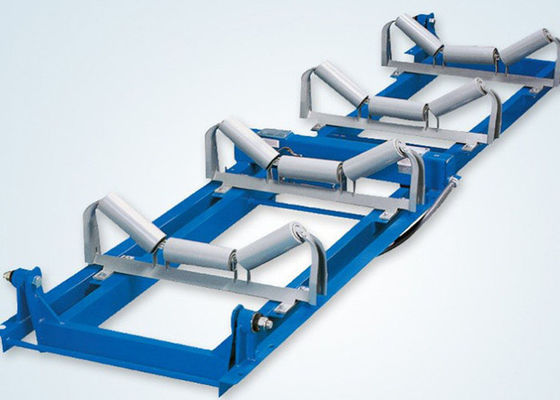

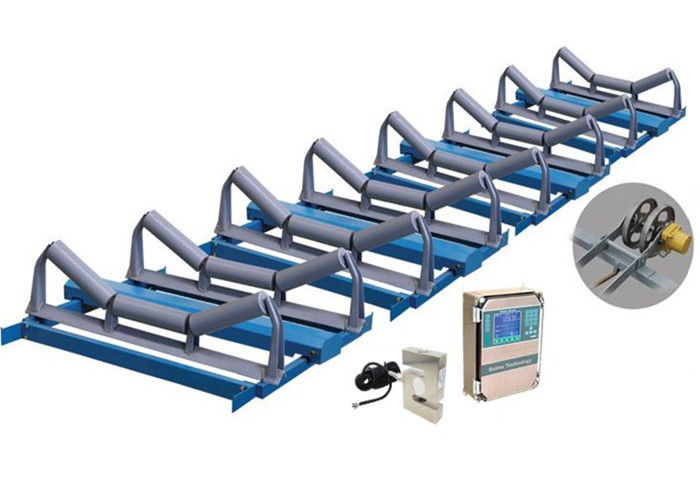

FH series high-precision electronic belt conveyor weighing scales is mounted on the Middle rack of belt conveyor, rubber belt conveyor transportation of materials measurement and display. It is a electromechanical integration equipment that the indicator can show the instantaneous flow rate and flow measurement.
Application Scope
FH series electronic belt scale is widely used in metallurgy, electric power, coal, mineral processing, transportation, ports, chemical, salt industry, and other light industry , for measurement of powder, granulated and small block materials.it have a significant effect.in improve production efficiency and reduce labor intensity and improve product quality, reduce production costs .
Main performance parameter
| NO. | Model | Bandwidth (mm) | Flow range (m³/h) | Accuracy | ||
| 1 | FH05 | 500 | 0.05-6 | Over0.5% | ||
| 2 | FH 06 | 600 | 0.5-10 | |||
| 3 | FH 08 | 800 | 2-30 | |||
| 4 | FH 10 | 1000 | 5-100 | |||
| 5 | FH 12 | 1200 | 10-200 | |||
| 6 | FH 14 | 1400 | 30-300 | |||
| 7 | FH 16 | 1600 | 50-500 | |||
| 8 | FH 18 | 1800 | 100-1000 |
Function
Convert the continuous analog signal from the load cell into the digital signal.
· Protection Class of Enclosure: IP65
· Circuitry Structure: 8-bit microprocessor, 24-bit A/D converter
· Power Requirement: 220VAC, 50Hz
· Communication: RS-485 serial communication available for the 6801 integrator, with settable baud rate: 9600, 19200 and 115200.
· Calibration: Needless
· Operating Temperature: -10~50℃
· Zero Temperature Drift: <0.15μV/℃
· Span Temperature Drift: <5ppm/℃
· Isolation: The input of load cell and speed sensor is optically isolated from other circuits.
Our Service
After-sales service
4.1 During the installation and commissioning, the seller shall send technician to the site for instruction of installation and commissioning, and for training of workers.
4.2 If there is any equipment failure caused by the buyer, the seller shall assist the maintenance of machines and replacement of fittings, and charges appropriate fees.
4.3 Beyond the guarantee period, the seller can provide services and fittings at a most preferential price.
4.4The seller can provide consultation and inspection services freely for other products, especially for the up-stream and down-stream products of our equipment.
Load cell
The load cell PLR9363-LS used in the FH type floating scale series belt scale is a strain gauge load cell
| Sensor type | Shear beam |
| Rated load(kg) | 50,100,200,300,500,1000,2000 |
| Sensitivity(mV/V) | 1.8±0.005 |
| Creep (30 minutes) | ±0.05％FS |
| Zero balance | ±1％FS |
| Zero temperature effect(％FS/10℃) | ±0.02 |
| Input resistance | 400±10Ω |
| Output impedance | 352±3Ω |
| Range of working temperature | -30℃～+70℃ |
| Safety overload | 120％FS |
| Material | Alloy steel |
| Outlet diameter | φ5mm |
| Outlet length | 3m |
Speed measuring device
FH type floating scale series belt scale generally adopts PLR-12R type speed measuring device. The PLR-12R type speed measuring device consists of a speed measuring sensor and a speed measuring roller, which is directly fixed on the conveying frame and suspends the roller on the return belt. The friction drives the roller to rotate to measure the speed.
The speed sensors are all carbon brushless pulse generators, which emit a series of pulses, each pulse represents a unit of belt travel, and the pulse frequency is proportional to the belt speed. The speed sensor is composed of a carbon brushless pulse generator and a cast aluminum housing (see Figure 1-2a above), and the protection level reaches IP65.
Package and Delivery
FAQ
Q: Guarantee period:
A: The guarantee period for the above machines is twelve months from the date of putting into use, but not exceeds twenty-four months after the machines leaving seller's factory. It is not applicable for quick wear parts.
Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. Every step will be sent to you in time.
Q: Can I customize shelving or racking at my own size?
A: Sure.
Q: If i need the complete packing line. Is Saimo able to help us build it?
A: Yes, we can help you combine a complete packing line. and give you related professional advice as long as you need.
There is a rich experience engineer team of us. we had already built many projects in China & Overseas. You can believe our quality and service.
