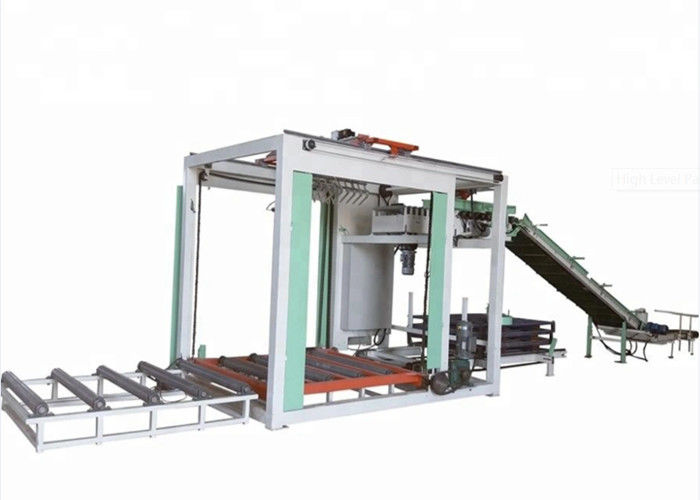

1200bags / min Bag Palletizer Machine

Bag Palletizer Machine In Grain And Oil Industry , Layer Machine And Pallet Conveyors

Brief information

High level palletizer can put packed product to pallet and stack, then push out it in order that forklift can carry it to warehouse. This machine adopts touch screen control, realizes intelligent operation management, simple, easy to master, can greatly reduce labor personnel and reduce the labor intensity. And adopt high speed, smooth, space-saving design. One machine is multi-purpose, adjust quickly and no need to worry about replacement for product.

Application scope

The palletizer is used to palletize the cartons/bags onto pallets (wood, plastic) according to certain arrangements for automatic piling. The cartons can be piled into multiple layers and pushed out, and can be conveniently conveyed by the forklift truck to the warehouse for storage. The equipment adopts PLC + touch screen control, realizing intelligent operation and management. It is convenient and easy to operate. It can greatly reduce labor force and lower labor intensity. It is designed with the concepts of high speed, stability, and space saving. It adopts split type plate release, which is faster and saves more space. With multiple functions in one machine, it realizes adjustment rapidly and frees you from the worry of replacing the piled products.

Specification and technical parameters

Working Process

1, Bags/boxes/crates travel up the in-feed conveyor

2, Slightly inclined gripper receives the bag/box/crate and places it against its back edge

3, Centralization unit inside gripper places bags/boxes/crates straight in the lateral centre of the gripper width

4, Gripper doors open simultaneously. Bags are dropped on sliding doors. Boxes and crates are lowered on sliding doors by centralization unit

5, Pallet is lifted up the enclosed stacking cage to be right underneath the sliding doors where individual layers are formed

6, Once layer is complete, squeeze collar compresses it to create a tight confined layer to the pallet’s dimensions

7, Sliding doors open to place layer on the pallet

8, Sliding doors close and a new layer is started. At the same time, pallet moves up to press against underside of the sliding doors to press and flatten recently formed layer

9, Pallet drops back down slightly for next layer to be placed on a flatten surface

10, Process is repeated until pallet is complete

11, As the pallet exits, a new layer starts. The sliding doors provide buffer to allow continuous palletizing

Machine Features

Touch screen operation is adopted to accomplish the man-machine dialogue, using the Siemens PLC programmable control number

The symmetry and compact structure design, suitable for the narrow space of the existing production sites

Taken the pallet database is big, can accommodate 15 empty pallets, which can realize automatic supply pallet. (pallet library is optional)

Don't have to change the stacking parts can complete several stacking ways, only need to obtain the parameters is ok.

Package and Shipping

Machine film wrapped and packed in exported fumigation wooden cases, then transported to departure port which customer required like Shanghai, Ningbo, Qingdao, Suzhou etc.

We can also transport the machines by flight, all depend on client's requirement.
