Product Details:
|
| Electrical Components: | AirTAC | Packing Speed: | 3-5 Bags / Minute |
|---|---|---|---|
| Precision: | 0.2-0.5% | HS CODE: | 8422400000 |
| Discharge Pressure: | 0.4-0.6 Mpa | Way To Change Package Weight: | By Changing Formula In Controller |
| Display Type: | Touch Screen/buttons | Electrical Source: | 380-220 V, 50 Hz |
| Highlight: | 30kg Pellet Bagging Machine,30kg pellet bagging equipment,30kg pellet packaging machine |
||

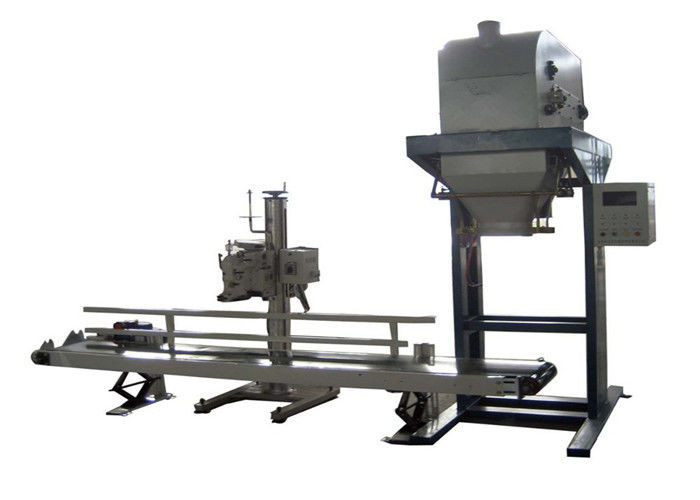

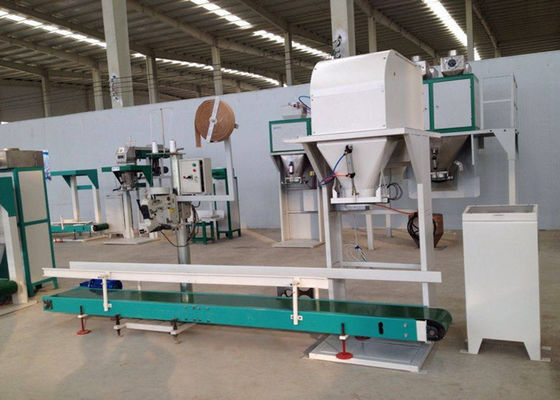

3 Phase Pellet Bagging Machine In Chemical industry , open mouth bags
Brief Introduction
This series of machines are designed for packing powders, flaked materials into open mouth bags.
Low dust and high accuracy are the advantages of this series. Suitable materials include: Flour, Titanium, Alumina, Kaolin, Lime Carbonate, Bentonite, Dry mortar, etc.
Scope of Application
High-speed weighing & bagging for fertilizer, agrochemical, feed, chemical raw materials, sugar and other industries which have certain humidity or bulky, sticky materials, loose strips and fibers, flakes below 10cm, spherical and other irregular materials. (Such as organic fertilizer, compound fertilizer, bagasse, sawdust, ore, manure, flake sulfur)
Working Principle
The materials will through the feeding parts(connect hopper) into the belt feeder then into the weighing hopper, the weighing hopper installation load cell to weighing, manual giving the bag to the packing machine bag clamp device and touch the sensor, the bag will automatic clamped, the finished weighing materials discharge into the bag, bag release and on conveyor to the sewing machine for bag closed by thread stitching.
Features
Use the method of weighing with a bucket;
Adopting multi-stage feeding mechanism, the weighing range is wide, and the speed and precision of the maximum and minimum weighing can be guaranteed.
The weighing control system is designed according to the requirements of IP54 (dustproof and waterproof).
The unit is composed of automatic weighing machine, conveyor, sewing machine and automatic control box.
Technical Parameters
| Model | Weighing Scope | Speed | Accuracy | Power | Air Pressure |
| SXP25S | 5-25kg | 4-10 bags/minute | 0.2%F.S | 3Kw | 0.4-0.6MPa |
| SXP50S | 20-50kg | 3-5 bags/minute |
Why Choose Us
15 years of experience in production research and development.
Ten years of experience in import and export.
Exports to more than 91 countries and regions.
Professional team with passion and diligence
After-sales Service
1.One year.
2. We will provide free parts for replacement if any problem belongs to us
3. One year later, we provide spare parts for replacement based on certain charge.
Packaging and Shipping
1.We always use standard export wooden packing, carton box.
2.You can choose express, by air, by train or by sea. Always we will give our best recommend based on our experience.
3.We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
FAQ
Q: About the machine voltage or power of machine?
A: Usually in our country is 220v,50hz, single phase, or 380v, 50hz, 3 phase. if you have the special requirement, pls tell us, we will vetify the voltage according to your requirement.
Q: Can you guarantee your product quality?
A: Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: How does your factory do regarding on quality control?
A: We pay much attention on quality controlling and strictly follow the professional standard forms from getting order, parts procession, assembly for whole set of machine and debug to shipment.
Q: Is your machine easy operation?
A: Yes, very easy. We will supply you the User Manual in English to guide your operation and all the button and controller will be in English. Also welcome your visit our factory to learn.
