Product Details:
|
| Accuracy: | 0.2-0.5% | Power: | Single Phase, 220 VAC, 50 Hz |
|---|---|---|---|
| Logo/OEM: | Customized | Control: | PLC And Touch Screen |
| Voltage: | 220V 50/60Hz | Application: | Powder / Granule |
| Bag Type: | Open Mouth Bag | Packing Speed: | 6-10 Bags/minute (granule) |
| Highlight: | 60Hz sugar sachet filling machin,60Hz powder filling and sealing machine,60Hz sugar sachet packing machine |
||

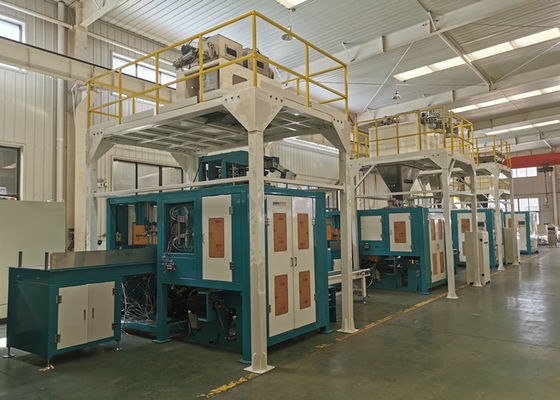

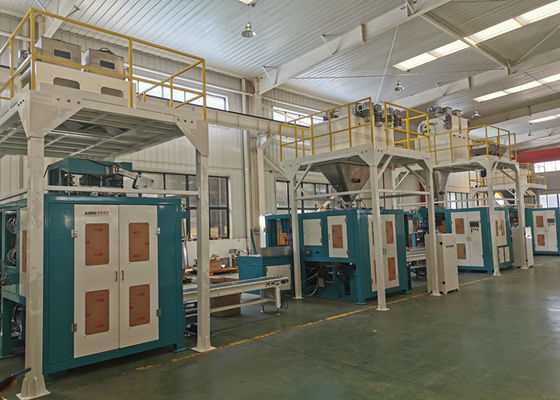

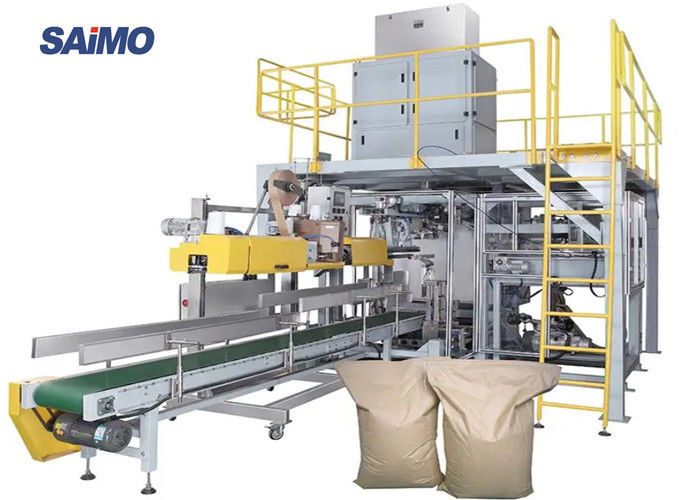

60Hz 50kg White Sugar Filling And Packing Machine In Food Industry
General Introduction
This unit is a dedicated equipment for automation production mainly to realize automatic packaging (automatic bag pickup, bag feed, bag delivery, bag opening, filling and bag sealing) and output of finished product. This equipment totally adopts PLC man-machine interface display screen control, which significantly facilitates operation, so, it is the requisite equipment for automated enterprise production.
Scope of application
Widely used in: grain (corn, rice, seeds, miscellaneous grains, etc.), fertilizer (compound fertilizer, compounding method), industrial plastics (carbon black particles, plastic granules), chemical building materials (granular sand, granules, pebbles, etc.) granules Quantitative filling of materials. For example: 10 kg bagged rice, 25 kg bag, 50 kg bag, etc.
Main Components List
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell | Toledo (Sweden) |
Machine Features
1. The 2 empty bag storages can store 200-400 empty bags at once which can save labors cost.
2. We use famous brand of Weinview touch screen which is easy to operate and inside English language for customer easy understanding.
3. The bag sending unit uses three mechanical grippers to clamp the bag and send it to the designated position through the electric cylinder, which reduces the drop rate and runs smoothly and reliably.
4. The bag opening & material filling mechanism is composed of a base component, a bag opening component, and a bag clamping component. 5. The entire operation runs smoothly and reliably, and the relevant movements are mainly completed by a robotic arm. The movements are coherent, coordinated and reliable, reducing the drop rate and instability.
Technical parameter
| Machine Model | SXPA50 | SXPA50P |
| Packaging Weight | 10-50KG | 10-50KG |
| Bag Size: L*W(mm) | 630-1100/350-650 | 630-1100/350-650 |
| Package Material | Woven bag (paint film); 2. Kraft bag; 3. Composite film plastic bag(film thickness is more than 0.18mm) | |
| Measuring Accuracy | 0.2%FS | 0.2%FS |
|
Packaging Speed |
6-15 bags/minute (a little different as different packaging materials and bag sizes) | 2-5 bags/minute (a little different as different packaging materials and bag sizes) |
| Sealing Mode | Woven bag: folding/seam; 2. Kraft bag: heat sealing/seam; 3. Composite film plastic bag: heat sealing | |
Service Environment
It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40℃, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Any time welcome to view our factory.
* Bring your sample test in our machine.
* Check the quality and device.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Provide the solution within 2 hours.
* Engineers can speak English to help.
Packaging and Delivery
1. Packing: Wrapped with film firstly, then packaged with standard wooden cases
2. Delivery: Usually we adopt sea transportation, if there are different requirements, we will make it accordingly
After-Sale Service
Fast Response
1. We will reply you in 1 work day to your problems.
Online Support
2. Provide online phone call support. Our engineer will call you to solve your problems.
3. Provide online video call support. Our engineer will send you a video call to guide you how to operate to solve the problems.
Spare Parts Support
1. Provide 1-year free spare parts change. Only if it is not broken by man-made.
| RFQ | |||||
| Material Characteristics | |||||
| Material | density | ||||
| material shape | Leafy | powdery | Granular & Powdery Mixed | Flaky | Other |
| Requirement of Packaging | |||||
| Net Weight in each bag(kg) |
Speed (bags/minute) |
Weighing Accuracy | |||
| Daily production capacity | |||||
| Bag style | M type bag / Normal open bag | ||||
| Bag material | Single layer PE Laminated film | ||||
| Bag size(mm) |
Empty bag: L * W Full bag: L * W * H |
||||
| Machine material | SS304 Contact parts SS304 Carbon steel Other | ||||
