Product Details:
|
| Weighing Accuracy: | 0.2-0.5% | Power: | 380-220 V, 50 Hz |
|---|---|---|---|
| Logo: | OEM | Display Type: | Touch Screen/buttons |
| Packing Speed: | 300-500 Bags / Hour | Machine Sizes(L* W* H): | 2300*900*30000 Mm |
| Packing Material: | Paper/woven/plastic Bag | Bag Type: | Open Mouth/M Type Bag |
| Highlight: | 70bag/Min Vertical Sachet Packaging Machine,240VAC Vertical Sachet Packaging Machine,240VAC automatic vertical packing machine |
||

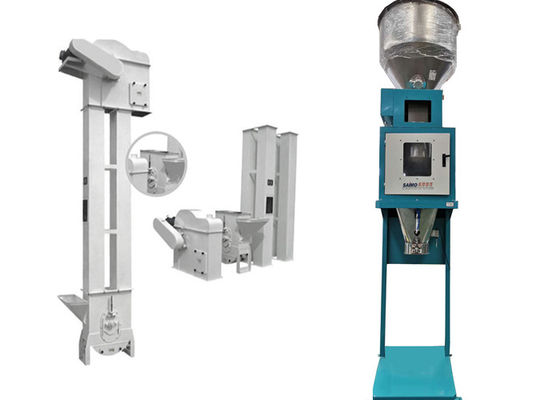

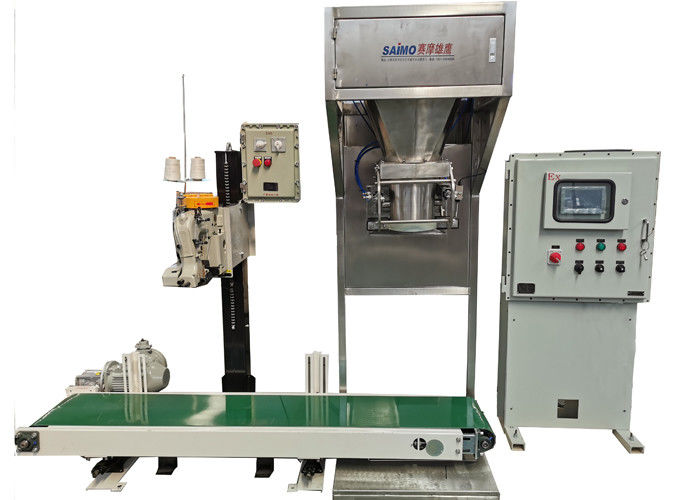

3 Phase Double Bucket Bagging Packing Machine In Pet Feed Industry
Features
Automatic test and correct the weighing errors
Sewing machine have auto-sewing, auto-wire breaking auto-alarming function
Touch screen for easy operation
Equipped with bag clamping system, just need manual put the bag to the filling mouth.
The bag size, and target weight and be easy adjust between the machine weighting range.
Main Components List
| NO. | Name | Brand / Producing area | Remark |
| 1 | Touch-sensitive screen | WEINVIEW /Taiwan | color screen |
| 2 | Programmer controlled system | PANASONIC / Japan | |
| 3 | Servo motor | PANASONIC / Japan | |
| 4 | Servo driver | ||
| 5 | Cylinder | AIRTAC / Shanghai | |
| 6 | Cylinder | AIRTAC / Shanghai | |
| 7 | Electromagnetic calue | JINGI / Taiwan | |
| 8 | Intermediate relay | Weidmuller / Germany | |
| 9 | Photoelectric eye | BEDELI / Taiwan | |
| 10 | Powder | Changxin / China | |
| 11 | Solid state relay | XIANLI / OMRON |
Technical parameter
| Machine type | SXP25G |
| Weight range kg | 5-25 kg, MAX50kg/bag |
| Accuracy | 2 |
| Scale division |
0.2-05%% (According to material characteristic) |
| Weight speed | 3-8 times /min |
| Environmental Requirement | relative humidity≤90% |
| Electrical Requirements | AC380V 50Hz |
| Power | 3KW |
| Air requirement | 0.4-0.6Mpa 1m³ /h |
| Machine weight | 400-600 kg |
Machine Main Parts
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC,
HMI (color touch screen panel) use the Germain / Unipulse (customized), the electric element we use the Schneider
The load cell we installation 3-4pcs Toledo load cell (max weight 200kg/pc, IP67).
The bagging machine can stable working 10 years.
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
4. Provide quantitative packaging scales with advanced design and excellent materials. The main components are selected from famous domestic and foreign manufacturers.
Kindly Reminder
Please let us know the follow packing details when you offer, so that we can check if this model is suitable for your case. Thank you in advance.
1. Product details or picture
2. Bag dimensions
3. Bag shape or Photo
4. Bag material
5. Machine Model or products link.
Packaging and Shipping
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
Inner package with stretch film, out package with export wooden box (with metal frame more safe and non-fumigation wooden), avoid the packing machine broken.
