Product Details:
|
| Weighing Accuracy: | 0.2-0.5% | Logo: | Customized |
|---|---|---|---|
| Voltage: | 50 Hz 380V | Package: | Wooden Case |
| Packing Material: | Plastic, Woven, Paper Bag Etc. | Warranty: | 12 Months |
| Packing Speed: | 6-10 B / H | Application: | Animal Food Etc. |
| Highlight: | IP54 Vertical Sachet Packaging Machine,IP54 1 kg salt packing machine,IP54 salt pouch packing machine |
||

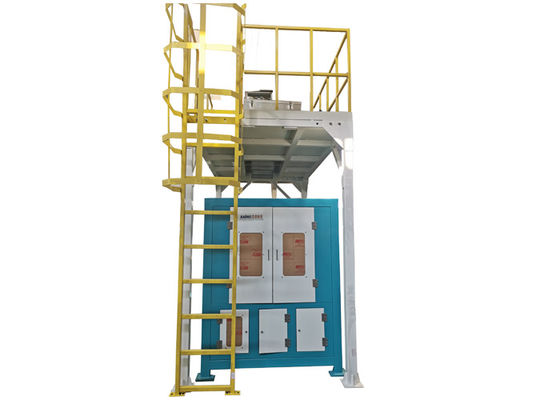

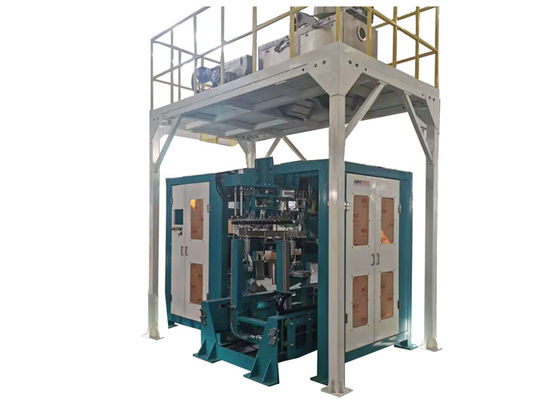

50kg Bag Grain Packing Machine For Animal Food 3 Phases Voltage 14 KW
Animal Food Packing Machine Introduction
Heavy bag granule automatic high-speed packaging machine is a new type of packaging machine, which is developed for the packaging of large bag granule materials in chemical, feed, grain, seed and other industries. This equipment totally adopts PLC man-machine interface display screen control, which significantly facilitates operation, so, it is the requisite equipment for automated enterprise production.
Features
1. PLC control system with low failure rate and higher reliability.
2.The host adopts fast and the slow inverter controls material filling.
3. This machine adopt PLC + man-machine interface display screen control with high performance, high speed and high efficiency;
4. This machine is structurally compact and has nice appearance
Technical parameter
| Machine Model | SXPA50 | SXPA50P |
| Packaging Weight | 25KG(Adjustable) | 25KG(Adjustable) |
| Bag Size: L*W(mm) | 630-1100/350-650 | 630-1100/350-650 |
| Package Material | Woven bag (paint film); 2. Kraft bag; 3. Composite film plastic bag (film thickness is more than 0.18mm) | |
| Measuring Accuracy | 0.2%FS | 0.2%FS |
|
Packaging Speed |
6-15 bags/minute (a little different as different packaging materials and bag sizes) | 2-5 bags/minute (a little different as different packaging materials and bag sizes) |
| Sealing Mode | Woven bag: folding/seam; 2. Kraft bag: heat sealing/seam; 3. Composite film plastic bag: heat sealing | |
| Power supply | 380V±10% 50Hz 14 KW | |
| Machine size | 5700*2800*4900mm | |
| Air supply source | 0.6MPa, 0.5m3/min | |
| Control system | PLC and touch screen | |
Product Application
Our new packaging machine unit designed for large bag of granule materials in chemicals, fertilizers, feeds, seeds, food and other industries has functions of automatic weighing, bag, filling, package sending and sealing etc. For example: 10 kg bagged rice, 25 kg bag, 50 kg bag, etc
Machine Main components
Empty bag storage
Bag management unit
Bag sending unit
Bag upper unit
Bag clipping and material filling unit
Bag mouth guiding unit
Heat sealing / bag sewing station
Stand-up bag conveyor
Electrical control section
Bag holding unit
Empty bag taking unit
Precautions for use
Notice: use specified supply voltage, this machine adopts single-phase 3-wire (AC380V, 50Hz), it shall be avoided to roll press the power line and the power line shall be rolled with hands when it is not used;
Notice: please keep the equipment clean inside and outside and avoid moisture;
Notice: please do not change any part on the machine;
Our Service
| Service | Content |
|
Documents |
Operational manual with English |
| Electrical diagram in English | |
| Certification like CE, Certificate of Origin (Form A, Form E etc.) | |
|
Before Sale Service |
- Leave Message to Us on Alibaba; - Send Email to Us Directly; - Add Me on WhatsApp / WeChat Directly: +86-18255170863 No Matter Which Way You Choose, We Shal Reply You As Soon As Possible. |
|
After Sales Service |
We Shall Arrange Engineers to Be at Present After Machine Arrived at Customer's Factory |
| Teaching Lessons Shall Be Arranged During Installation Periods | |
| The Engineer Shall Head Back to China Until Machine Running Stable at Present |
Packaging and Shipping
* Machine packing inside is plastic films and outside is fumigation wooden case.
* Our wooden case is very strong; it can bear long time shipping on the sea.
FAQ
Q: How long is your delivery time?
A: Normally 60 days after confirmed order. 45 days could be available in low season for some items (during May to July), and 85 days during new year and hot season (Jan to March).
Special cases need discuss.
Q: How do we test your machinery?
A: When the machine complete manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance, balance before shipment.
