Product Details:
|
| Usage: | Conveying Bag / Carton | Power: | 15000 W |
|---|---|---|---|
| Material Feature: | Dust / Explosion-proof | Voltage: | 220V |
| Speed: | 0-50 M / Min | Package: | Wood Box |
| Working Temp.: | More Than 100° | Controller: | Provided |
| Highlight: | 15000W Heavy Duty Gravity Roller Conveyor,220V Gravity Roller Conveyor,15000W bagging conveyor |
||

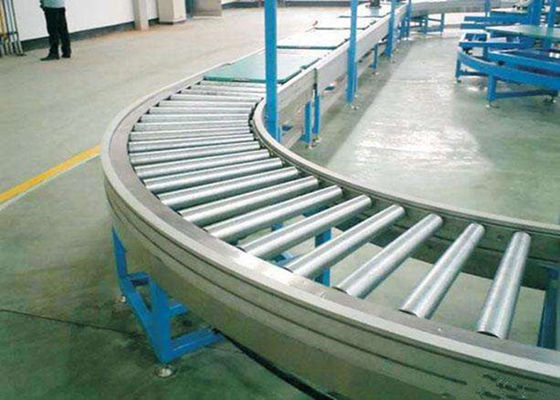

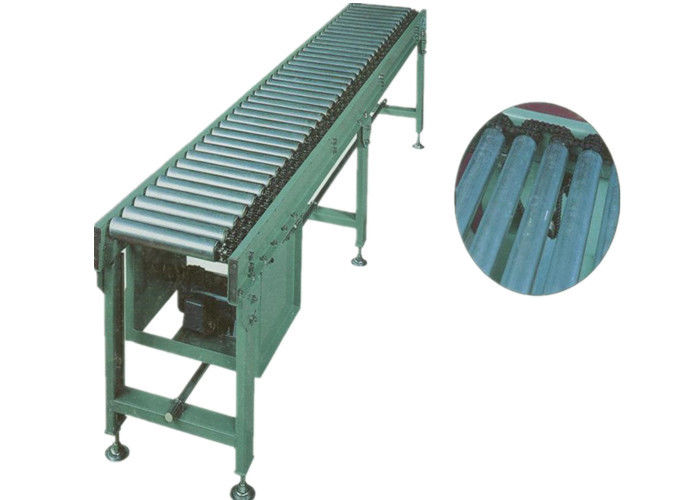

Gravity Heavy Duty Industry Roller Tables Conveyor , 15000 W , Gravity Or Motorized Roller
Application
The rollers machine is applicable to transport the goods whose bottom is flat. For example: electronic, beverage, food, packaging, machinery, electronics, light industry, tobacco, chemical, pharmaceutical, rubber, motorcycle, logistics etc.
Options
Side guides;
End stop;
Caster wheel with brake;
Heavy duty adjustable feet can be anchored to the ground.
Features
● simple structure, stable running, accord with international safety standard
● modular design, easy installation and maintenance
● big bearing surface, strong carrying capacity, long service life
● used in indoor pallet conveying
Drive
Standard conveyor is equipped with high quality reducer motor. Configuration position, output revolution and power etc of reducer motor are determined by working condition. Motor power depends on loading, conveyor speed and length etc. Common motor power can be 0.25, 0.37, 0.55, 0.75, 1.1, 1.5, 2.2 kw.
Specifications
Common length range: 1000~6000mm
Effective widths depend on goods size series;
Roller
Roller with high quality bearing can rotate smoothly, small resistance, low noise, long service life and galvanization treatment on roller surface.
Support
Adjustable foot is mounted at the bottom for height adjustment within the range of ±30mm.
Distance between supports is determined by working condition.
Speed
Normal speed can be 12, 16, 18m/min, maximum speed can be 20m/min.
Technical Parameter
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum alloy (shell) |
| 2 | Roller | Stick face diameter φ76, shaft φ28 | Galvanized |
| 3 | Outrigger | Channel steel: 100x48x5.3 | Carbon steel spray |
| 4 | Beam | Bending plate, thickness 5mm | Carbon steel spray |
| 5 | Chain | Defu//12A | Black |
Machine Models
| No. | Model | Name | Size | Note |
| 1 | XYR-DHA | Heavy pallet buffer conveyor A | Available width W=1240 | Adapt to pallet length 1000mm-1200mm |
| 2 | XYR-DHB | Heavy pallet buffer conveyor B | Available width W=1440 | Adapt to pallet length 1200mm-1400mm |
Our Advantages
Any inquiries will be replied within 24 hours.
Professional manufacturer. Welcome to visit our factory.
Technical support and quality control
We are a professional manufacturer of conveyor parts,conveyor system line, packing machine and palletizing robot system in the year 2007. There are 12 high-quality engineers and designers for great technical backup. Meanwhile, Quality Control Dept. make the test of part and machine to ensure the high quality.
Package and Shipping
All the products will be strictly quality checked in house before packing.
All the products will be well packed before shipping.
All the products will be packed in wooden cases with preservatives, dryers to prevent seawater corrosion.
When Eagle packaging systems leave our docks it's our responsibility to ensure that they are installed successfully, meet your expectations, and can be supported for the long haul. On a daily basis we support machinery that has been in continuous use for more than 20 years. We want to do the same for you.
