Product Details:
|
| Storage: | 10-12 Empty Pallet Each Time | Power: | 1.5 KW |
|---|---|---|---|
| Origin: | Hefei , China | Application Pallet: | Only One Type Pallet |
| Beam: | Bending Plate, Thickness 4-5mm | Installation: | Online Guide, Easy To Install |
| User Manual: | English Version | Controller: | One Controller For Whole Conveyor System |
| Highlight: | 1.5KW Palletizing Conveyor,1.5KW Palletizing Conveyor,1.5KW pallet gravity conveyor |
||

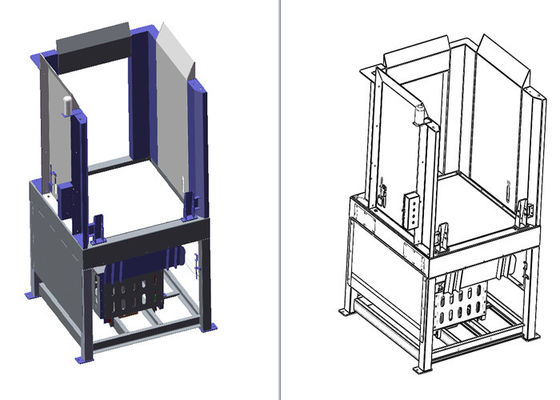

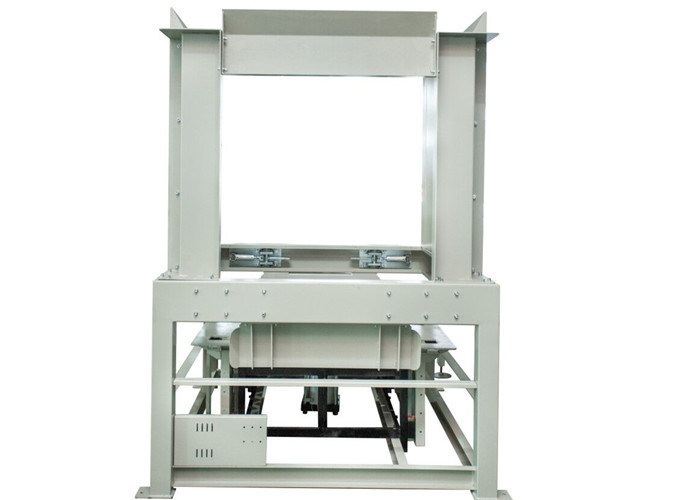

Single Or Double Line Pallet Magazine Equipped With Palletizing Robot Line In Medicine Industry
Introduction
Workers put the empty pallet into the pallet magazine with a forklift. When one pallet is full stacked, the palletizing conveyor conveys it to the forklift conveyor. At the same time, the cylinder below the pallet magazine is controlled by the middle-sealing solenoid valve to lift the pallet in the magazine and release one pallet at a time. This pallet will be transported to the palletizing conveyor. Such repeated cycles can effectively save the number of pallets placed and also ensure the safety of the operation.
Product features
● simple structure, stable running, accord with international safety standard
● modular design, easy installation and maintenance
● big bearing surface, strong carrying capacity, long service life
● used in indoor pallet conveying
Drive
Standard conveyor is equipped with high quality reducer motor. Configuration position, output revolution and power etc of reducer motor are determined by working condition. Motor power depends on loading, conveyor speed and length etc. Common motor power can be 0.25, 0.37, 0.55, 0.75, 1.1, 1.5, 2.2 kw.
Specifications
Common length range: 1000~6000mm
Effective widths depend on goods size series;
Roller
Roller with high quality bearing can rotate smoothly, small resistance, low noise, long service life and galvanization treatment on roller surface.
Machine Models
| No. | Model | Name | Size |
| 1 | XYR-TKA | Pallet magazine A | According to customer's pallet size |
Technical Parameters
| No. | Name | Brand/Model | Material |
| 1 | Bearing seat | LK | Cast iron |
| 2 | Cylinder | AirTAC | Aluminum alloy cylinder |
| 3 | Electromagnetic valve | AirTAC | / |
| 4 | Outrigger | Square tube 100x100 | Carbon steel spray |
| 5 | Beam | Bending plate, thickness 4mm | Carbon steel spray |
| 6 | Rail slider | Silver | / |
WHY CHOOSE US
1.We have 20 years’ experience to packing lines
2.Strong ability of product sure to deliver the goods within a month
3.We have a stable technology team that more than 30 engineers in our factory
4.ISO9001 certified workshop and CE
5.The supporter of spare part all are famous company and have reliable quality
Package and Shipping
Machines are film wrapped and fixed in the exported wooden case. All the wooden cases will be transported to departure port warehouse to wait for loading in container or directly load in the container in our factory. All based on customer’s requirements.
