Product Details:
|
| Material Feature: | Heat Resistant | Conveyor Size: | 1-2 Meters Long, Customized |
|---|---|---|---|
| Max Loading: | 2 Tons | Outrigger: | Carbon Steel Spray |
| Beam: | Bending Plate, Thickness 4-5mm | Installation: | Online Guide, Easy To Install |
| User Manual: | English Version | Controller: | One Controller For Whole Conveyor System |
| Highlight: | 2m industrial belt conveyor,2m motorized belt conveyor,Single Phase Palletizing Conveyor |
||
Single Phase Bag Flatten Palletizing Conveyor In Fertilizer Industry , CPG Motor
Application
We have different kinds of conveyor lines, such as belt conveyor for bags, roller conveyor for bottles/drum/cartons, elevating conveyor, shaping conveyor, bag flatten conveyor, heavy load conveyor, pallet conveyor, pallet magazine system etc. Our conveyors are applicable for all kinds of industries, like rubber & plastic, food, feed, grain, chemical, fertilizer, chemistry and so on.

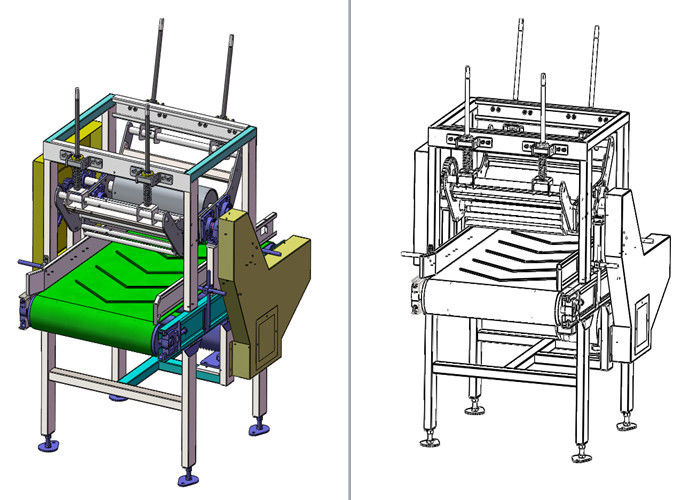

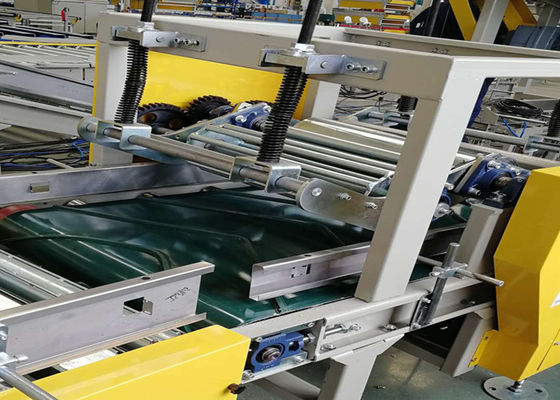

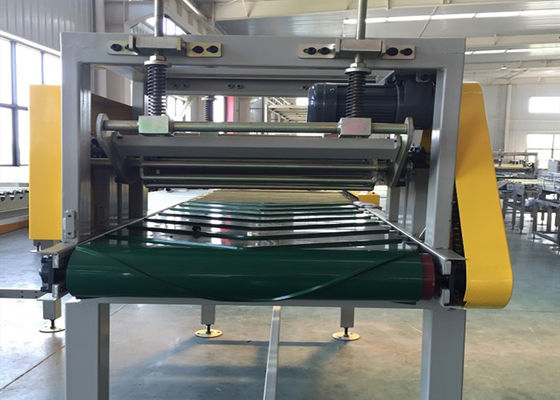

Conveyor Type - Bag flatten conveyor
Through the vibration conveyance of the square roller, the bag is transported to the bag flatten conveyor to reshape the bag, so that the products in the packaging bag are uniform and the palletizing type is neater and more beautiful.
| No. | Model | Name | Size |
| 1 | XYR-YBA | Bag flatten conveyor A | Length 1300mm, belt width 700mm, Height 750mm |
| 2 | XYR-YBB | Bag flatten conveyor B | Length 1300mm, belt width 700mm, Height 1000mm |
Technical Parameters
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum (shell) |
| 2 | Belt | Yongbo | PVC |
| 3 | Bearing block | LK | Cast iron |
| 4 | Outrigger | Square tube 80x40 | Carbon steel spray |
| 5 | Beam | Bent plate, thickness 4mm | Carbon steel spray |
| 6 | Main roller | Eagle, Diameter φ138 | Carbon steel spray anti-rust paint |
| 7 | Driven roller | Eagle, Diameter φ138 | Carbon steel spray anti-rust paint |
| 8 | Guardrail | Bent plate, thickness 1.5mm | Stainless steel 201 |
| 9 | Bag flatten roller | Eagle, Diameter φ172 | Carbon steel galvanized |
| 10 | Bag flatten cage roller | Eagle, Diameter φ172 | Carbon steel galvanized |
Conveyor Features
Roller conveyor is easy to link. And it can form a complex logistics conveyor system and shunt mixing system matched with multiple roller line and other conveying equipment.
It has the big transmission capacity, quick speed and fast running features, also can achieve more varieties of shunt conveying.
Options
Side guides;
End stop;
Caster wheel with brake;
Heavy duty adjustable feet can be anchored to the ground.
Our Service
1. one-year guarantee for whole machine
2. 24 hours technical support by e-mail
3. calling or door-to-door service
4. 90% of replacement parts can be shipped for next day delivery;
5. Field installation available.
Package and Shipping
Machines are film wrapped and fixed in the exported wooden case. All the wooden cases will be transported to departure port warehouse to wait for loading in container or directly load in the container in our factory. All based on customer’s requirements.
FAQ
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
The technical support is permanent.
The paid spares parts could be provided at any time.
We have agent in some countries to offer compensable service.
Q:Which port is the nearest ?
A:Shanghai, Ningbo, Guangzhou, Shenzhen
Q:What's your lead time ?
A:Normally 20-30 days after we receive your deposit.
