Product Details:
|
| Type: | Transportation System | Roller Material: | Galvanized |
|---|---|---|---|
| Max Loading: | 2 Tons | Motor: | CPG – Taiwan |
| Roller Diameter: | 38mm, 50mm, 60mm, 76mm And 89mm | Material Feature: | Heat Resistant |
| Power: | 0.75 / 1.5KW | Material: | Carbon Steel |
| Highlight: | 1.5KW Elevating Conveyor,1.5KW grain belt conveyor,1.5KW feed belt conveyor |
||

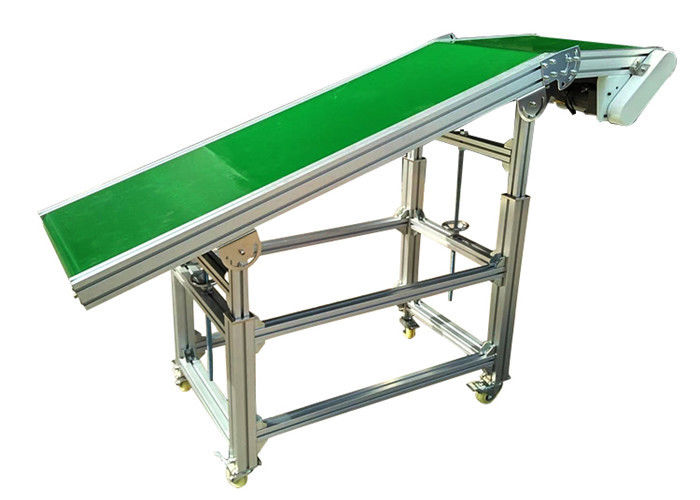

3 Phases Elevating Palletizing Conveyor In Feed Industry , SEW Motor Optional
Brief Introduction
Belt conveyor has the advantages of large conveying capacity, simple structure,easy maintenance, standardize components etc. According to different technical, it can be operated either in single unit or multiple unites. It can also be installed horizontally or slope to meet the need of different transfer lines.
In order to fulfill the requirement of different production line, it can be connected with other conveying equipment constitute a standard or tilted conveyor system.
Application
We have different kinds of conveyor lines, such as belt conveyor for bags, roller conveyor for bottles/drum/cartons, elevating conveyor, shaping conveyor, bag flatten conveyor, heavy load conveyor, pallet conveyor, pallet magazine system etc. Our conveyors are applicable for all kinds of industries, like rubber & plastic, food, feed, grain, chemical, fertilizer, chemistry and so on.
Conveyor Type
The product conveys the bag to a certain height through the elevating conveyor to achieve various functions such as bag shaping, flatten, and grabbing, to improve the grabbing speed, and to achieve the function of caching bags by photoelectric detection and PLC program control.
| No. | Model | Name | Size |
| 1 | XYR-PPA | Elevating conveyor A | Length 2000mm, belt width 550mm, height 200mm-750mm |
Technical Parameters
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum (shell) |
| 2 | Belt | Yongbo | PVC |
| 3 | Bearing block | LK | Cast iron |
| 4 | Outrigger | Square tube 80x40 | Carbon steel spray |
| 5 | Beam | Bent plate, thickness 4mm | Carbon steel spray |
| 6 | Main roller | Eagle, Diameter φ138 | Carbon steel spray anti-rust paint |
| 7 | Driven roller | Eagle, Diameter φ138 | Carbon steel spray anti-rust paint |
| 8 | Guardrail | Bent plate, thickness 1.5mm | Stainless steel 201 |
Belt Conveyor Features
1. transportation safely.
2. high efficiency and reliable
3. save space, easy maintenance
4. long service life
5. heavy duty load
6.cost economic
7.no noise
8.connect roller conveyor and other conveyors ,extend production line .
9.Uphill and downhill easily
FAQ
Q:Are you a factory or a trade company?
A:We are the factory.
Q:Where are your products distributed?
A:Our products are distributed all over the world,main markets are Europe,North America, South America, the united Arab emirates, Africa and so on.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
The technical support is permanent.
The paid spares parts could be provided at any time.
We have agent in some countries to offer compensable service.
Q:Which port is the nearest ?
A:Shanghai, Ningbo, Guangzhou, Shenzhen
