Product Details:
|
| Gas Consumption: | 4.0Nm³/min~8.0Nm³/min | Cylinder Brand: | SMC Or Customized |
|---|---|---|---|
| Related Voltage: | AC220V±10% AC380V±10% | Machine Sizes(L*W*H): | 2800*3700*5000mm |
| Material Feeding: | Belt / Vibration / Auger | Chain Conveyor Max Loading: | 2.5 Ton |
| Relative Humidity: | ＜85% | User Manual: | English Version |
| Air Pressure: | 0.5-0.8 MPa | ||
| Highlight: | 1500Kg sack packing machine,1500Kg industrial packaging machines,1500Kg bulk bag packing machine |
||

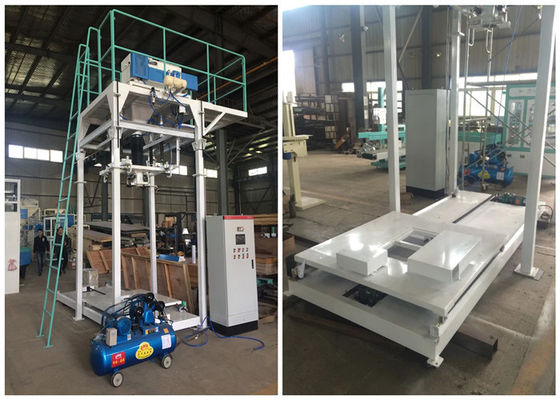

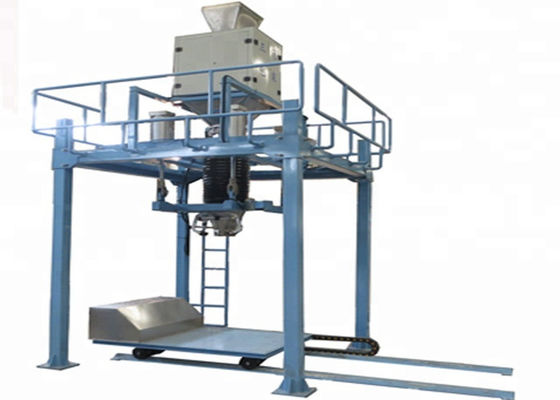

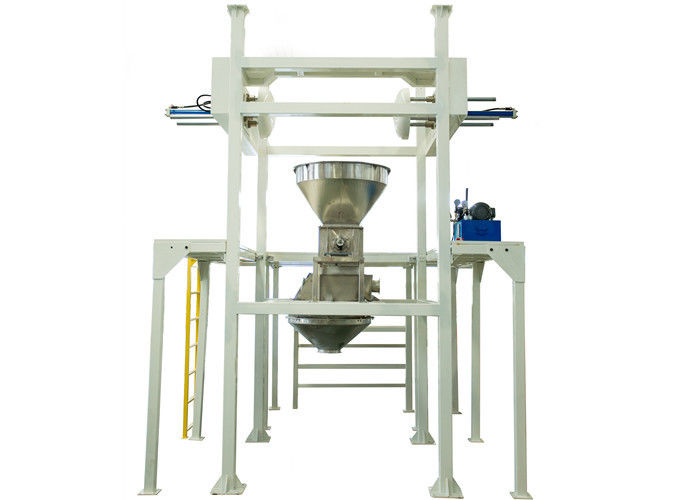

Hydraulic Lift Jumbo Bag Unloading Machine In Material Unpacking System , 1500 Kg Sack
Brief Introduction
A series of large bag unloaders provided by Saimo can quantitatively discharge bulk materials packed in various large bags, adopting a dust-proof structure design, and no dust leakage during operation. Saimo can provide equipment for discharging according to volume and also for discharging according to weight.
Application Scope
Saimo SXDX1000 series large bag unloader, it lifts the ton bag to the equipment inlet, manually disassembles the ton bag discharge port, opens the flow valve and is supplemented with a vibration device to force the powder and granular materials in the ton bag to fall into the storage by gravity in the bucket to complete the unpacking and unloading work
Technical Parameters
| Model | Discharge gravity | Discharging speed | Lifting capacity | Temperature | Working pressure | Air consumption |
| SXDX1000 | 400-2000kg | 5-20 bags/hour | 2-3T | -20 -- 45℃ | 0.5-0.6Mps | 5m³/h |
Our Advantages
- EAGLE Packing Automatic Establish in 2007 with Rich Experience for over 15 years
- We Have Professional Technical Developing Team & After-Service Engineering Team
- Our Products Have Reached About 30 Countries
- We Focus on Big Bag Packing & Welcome Customer Coming for Checking Machine Directly
SPECIALIST
Permanent investment in research and development, we are specialists in bagging bulk solids in all sorts of bags: open mouth bags, big bags etc.
EXPERIENCE
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity.
PROFESSIONAL SERVICE TEAM
We have a professional team to provide you with 24-hour online service. And our efficient after sales service is present worldwide.
Flowing chart
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling- testing-packaging and transport-after service
Machine Installation
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
Packaging and Delivery
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
FAQ
Q: What’s your terms of payment?
A: Payment is Less than or equal to1000USD, 100% in advance. Payment is more than 1000USD, 30% T/T in advance, balance before shipment.
Q: How do we test your machinery?
A: When the machine completely manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.
Q: Do you offer Installation & debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
