Product Details:
|
| Condition: | New | Application: | Grain Processing |
|---|---|---|---|
| User Manual: | Provided In English | Raw Material: | All Kinds Of Grain |
| Warranty: | One Year | Spare Parts: | Provided |
| Heating Source: | Electricity, Natural Gas, Coal, Diesel Etc. | Drying Capacity: | 10, 12.5, 15, 22, 30 Tons/24 Hours |
| Logo OEM: | Allowed | Installation: | Engineer Guide |
| Highlight: | Circulating Paddy Dryer machine,Circulating paddy rice dryer,Circulating paddy grain dryer |
||

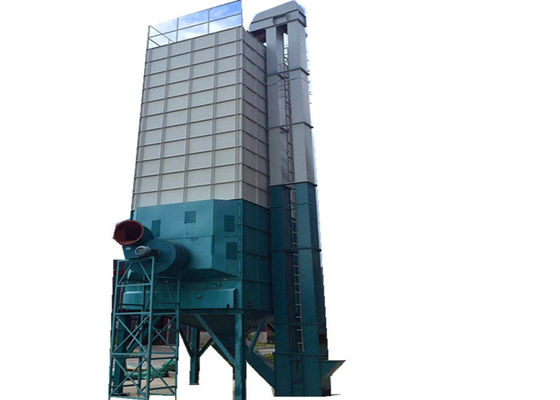

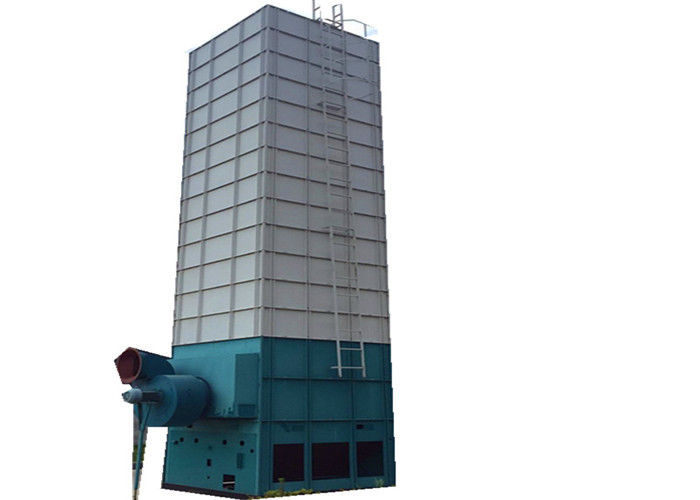

Vertical Type Small Circulating Paddy Dryer Machine Unit 10 Tons In Grain Industry
Brief Introduction
Grain dryer grain dryer is used to dry wheat, corn, rice and other grain materials.Compact structure. Its feed, circulation and discharge are combined with lift.It has the characteristics of light weight and small area. Walking drying equipment can move with dry materials at the same time.
Product Feature
Low rotation speed auger and anti-crushing hoist ensures low breakage rate of grain and good quality drying.
The hoist is designed with two barrels and equipped with the anti-damage device to reduce the breakage rate of grain.
The gear motor and NSK/ASAHI bearing imported from Japan are used.
The design of vertical four-slot and the large drying layer ensures high drying efficiency and good quality.
The part in contact with grain is designed with stainless steel to increase wear and corrosion resistance.
The manganese steel is used for auger, and the surface is hard and wear-resistant after special treatment.
Working Principle of paddy dryer
It adopts rotary heating device; it can output enough hot air in a short time and kill eggs though high temperature.
It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon.
Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively.
Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box
Technical Parameters
| Dryer Type | XY-12.5T | XY-15T | XY-30T | |
| Structure Type | Fixed | Fixed | Fixed | |
| Whole Machine Weight(kg) | 3240 | 3625 | 4280 | |
| Overall Dimension(Length*width*height) (mm) | 3836*2480*10547 | 3836*2480*11637 | 4137*4058*12107 | |
| Volume(kg) | Paddy(560 kg / m³) | 2500-12500 | 2500-15000 | 6500-22000 |
| Wheat(680 kg / m³) | 3035-15200 | 3035-18200 | 7800-25000 | |
| Heating Method | Hot stove, boiler, burner, Indirect heating | Hot stove, boiler, burner, Indirect heating | Hot stove, boiler, burner, Indirect heating | |
| Voltage | 3 phase,380V,50HZ | 3 phase,380V,50HZ | 3 phase,380V,50HZ | |
| Whole Machine Power(KW) | 9.77 | 9.77 | 10.77 | |
|
Capacity |
Feed time(Minute) | 50-60 | 60-70 | 60-70 |
| Discharge time(Minute) | 45-55 | 50-60 | 50-60 | |
| Precipitation rate(%/hour) | 0.5-1.2 | 0.5-1.2 | 0.5-1.2 | |
|
Safety Devices |
Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | |||
Application of grain drying machine
It is suitable for drying wheat, rice, paddy, corn and so on grains.
Capacity: 12.5/15/22/30 tons per batch.
Moisture Reduction per hour (%/h): Rice/wheat:0.5-0.8 or 1.2.
The drying box has heat preservation layer of silicon cotton, so it can reduce energy consumption efficiently. And the grain dryer adopts indirect heating system
Components of paddy dryer
It is mainly composed of feeding device, bucket conveyer, drying box, dust catcher, efficient hot-blast stove, fan, on-line temperature measuring instrument, rapid water meter, electric control system and other systems.
Optional Device – Heating Stove
Box type hot blast stove
The box type hot blast stove is an environmentally friendly stove independently developed by our company which using coal, biomass, etc. as the heat source. It has low using cost and high heating efficiency. It is equipped with an automatic constant temperature ventilation device which can reduce the crack ratio of grain and ensure the grain quality by controlling the temperature automatically.
Product characteristics
Diverse fuels available (Coal, biomass, rice husks, etc.) with low operating costs.
Indirect heating, clean air and no pollution to grain
Large furnace capacity, unique S-type channel heat exchange device, high heat exchange efficiency
Automatic temperature control system, stable hot air, easy operation
Product Parameters
| Model | 5L-30 | 5L-45 | 5L-60 |
| Overall Dimension(mm) | 2950*1410*2170 | 4000*1410*2170 | 4000*1600*3000 |
| Rated voltage | 380V50HZ | ||
| Required power | 2.2 | 2.2 | 3.0 |
| Heating Method | Indirect Heating | ||
| Suitable fuel | Coal, biomass, rice husks, etc | ||
| Hot air temperature | 60℃-150℃ | ||
| Control method | Automatic control | ||
| Safety | Automatic thermostat, hot air temperature sensing, smoke extraction, air supply, temperature control automatic synchronization | ||
Note: The property and precipitation rate listed in the above table is the reference value. The actual value will be different due to the outside air temperature, relative humidity, dry type, hot air temperature and moisture content before and after drying.
Packing & Delivery
Due to the large volume of the dryer, we will divide the machine into many small parts before delivery, which is convenient for packaging and transportation.
By now, eagle brand machinery has been successfully exported to many countries and regions, including Indonesia, Russia, Vietnam, Philippines, Mexico, Bangladesh, Mozambique, Egypt, Kenya, Uganda, Sri Lanka, Poland, Zambia, Nigeria, Nigeria, Ethiopia, Benin, South Africa, Argentina, Brazil and Greece etc.
