Product Details:
|
| Bag Sealing Typpe: | Bag Sewed Or Heat Sealed | Controller: | Canada Germain |
|---|---|---|---|
| Automatic Grade: | Semi-automatic | Voltage: | 380V |
| Function: | Weighing, Filling, Sealing | Frequency: | 50-60Hz |
| Packing Speed: | 100-180 Bags Per Hour (calculate By Flour 25 Kg) | Air Pressure: | 0.4-0.6 MPa |
| Power: | 4 KW | ||
| Highlight: | 20Kg Bag Powder Weighing And Filling Machine,20Kg powder bag packing machine,20Kg powder filling packing machine |
||

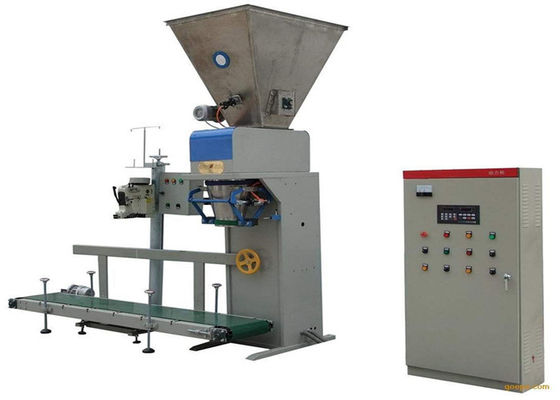

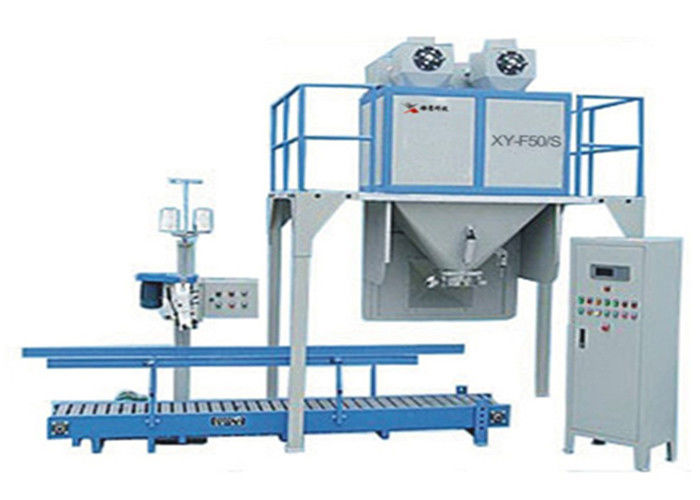

Stainless Steel Powder Weighing And Filling Machine In Fertilizer Industry , 20 Kg Bag
Brief Introduction
This machine adopts advanced microcomputer control processing technology, double-level laying-off control, which increases speed and accuracy, this machine is made of laying-off control devices, fixed bags and weighing control system. The part contacting with material adopts 304 stainless steel to improve corrosion resistance.
This series packaging machine can be matched with feeder, hopper, bag filter, conveyor, bag sewing machine, and air compressor etc.
Procedure
Raw material silo → Packing unit → manual Bagging → automatic Measurement → automatic bag discharge → Conveyor → automatic Sewing machine.
Technical Parameters
| Weighing range | 10-50kg |
| Weighing accuracy | ±0.5% |
| Weighing rate | 180-240 bags/h |
| Power/current | 5kW/10A |
| Air supply pressure | 0.36MPa |
| Metering mode | Suspension sensor |
| Frequency/voltage | 220V / 50 Hz / 3 phase (can change as your requirement) |
| Power supply mode | 3-phase 5-wire system (can change as your requirement) |
| External dimensions (L*W*H) | 4000*2000*3500(mm) |
| Unit weight | 1200 kg |
Features:
It has the advantage of high calculating precision, stable functioning, digital demonstration and easy operation.
The auto-adapted software has the function of controlling the parameter setup, the self correcting of the fall height, deviation alarm and fault self-diagnostics etc.
Wide quantitative extent, high precision and aplatform that can be raised and lowered makes it have more functions and efficiency higher.
Adopt the imported sensor and pneumaticimple mentation mechanism which makes the work reliable, the maintenance easy and no pollution.
Machine Main Components List
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Avionics | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 | Other low-pressure component | Zhengtai | 1batch | |
| 7 | Motor | Zhengjiang China | 1batch | |
| 8 | Cylinder | AIRTAC | 1batch | |
| 9 | Magnetic valve | AIRTAC | 1batch | |
| 10 | Other pneumatic element | AIRTAC | 1batch |
Packaging and Delivery
1. Wooden case after fumigation treatment. No need timber inspection.
2. All the spare parts are packaged by soft materials, to avoid damages during delivery; at last, we'll cover plastic wrap out it to make sure Waterproof and rust proof.
Our Service
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout.
Sale service
1.Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services;
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One-year warranty and Providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to service machinery overseas.
6. Provide English Version of Installation/Operation/Service/Maintenance Manual.
