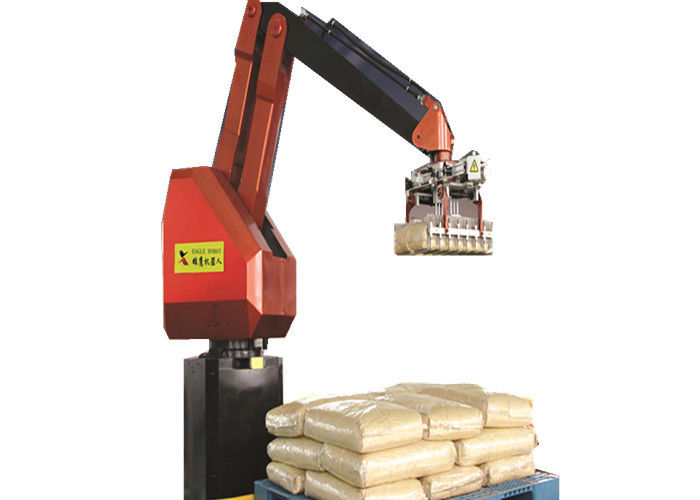

4.5KW Palletizing Robot Arm

Floor-Mounted Multi-Line Palletizing Robot Arm In Feed Industry

Introduction

Eagle XY-SR serious palletizing robot is four-degree cylinder surface coordinate palletizing robot, mainly move by horizontal movement axis, vertical movement axis, rotation foundation and hand axis.

The palletizing robot is constituted of palletizing robot body, robot hand, robot gripper, robot base and so on parts.

The multilayer of palletizing enables the fork moves them into storehouse. This equipment adopts PLC touch screen and intelligent managing which us not only simple and easy to master, but also reduce labor.

Technical Parameters

Function Advantages

Reliability - long uptime

Fast - Short cycle times, the robot is specially optimized for packaging application.

High precision - components production is in high quality and stability so that the robots has a very high accuracy.

Strong function - a wide range of applications.

Versatility - Flexible integration and production.

We will recommend our customers different models robot palletizers based on their products and requirements.

Product Application

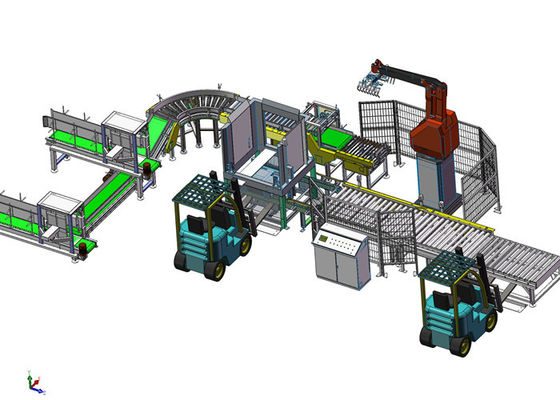

The robot palletizer can be used at any production line, providing intelligent, rogotic and network for production site. It is a palletizing logistic system which can be used in the industry of beer, beverage and foodstuff etc., widely usde for carton, plastic crate, bottle, bag, barrel, shrink wrapped product and cans etc.

Main Electrical Components List

Software Unit

1. Chinese and English or other language supplied operating.

2. Main machine parts use famous brand motor like SEW.

3. Built-in palletizing software package.

4. Convenient to confirm the status of the pallet.

5. Precise positioning of the pallet position.

6. Easy to choose the job and writing mode.

Commission and After-sale Service

We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.

If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will

go to your factory to install and adjust the processing line to realize normal production at shortest time.

Our engineers have responsibility to train and teach the workers how to operate, clean, maintain the repair all the machine, until the worker could well operate the production line.

It normally costs 10 days for the commissioning service, and we supply 1-year guarantee from the date of completion of commissioning service.

The engineer’s round-trip flight tickets, accommodation and daily salary USD 60-100 are on client’s account.

Robot Working Movement

Electric Parts

Customize Contact Us

You would like to know the detail offer of the machines, please confirm your detail requirements (information as below) for the whole project so that we can suggest the best suitable machine model for you.

1. What's your product? Packed in bag or carton or others?
2. How many packages per hour?
3. Can you send me the layout of your current workshop? We have to design the drawing of the whole line based on your workshop layout. If no, please tell us the available sizes of your workshop.
4. What's the height of full pallet (without the empty pallet thickness)?
5. What's the palletizing type (how many bags per layer, how many layers per pallet, how the bags are put on each layer)?
6. What's the sizes (length, width, height) of empty pallet?

7. Do you want auto pallet magazine?

8. What’s your country voltage?

FAQ

Q: what’s the package ?

A: All goods are packed in wooden box

Q: Do you offer Installation&debugging?

A: Our engineers are available to service machinery overseas to help customers to solve machine problems.

Q: what’s policy for guarantee and broken parts ?

A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.

Q: What’s your terms of payment?

A: Payment is Less than or equal to1000USD, 100% in advance. Payment is more than 1000USD, 30% T/T in advance, balance before shipment.

Q: How do we test your machinery?
A: When the machine completely manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.
