Product Details:
|
| Name: | Weight Checking Machine | Function: | Check Weight |
|---|---|---|---|
| Power Supply: | 110v,220v,380v Can Be Customized | Weighing Range: | 6-6000g |
| Max Accuracy: | ±2-5g | Raw Material: | 304SS Or Carbon Steel |
| Controller: | LCD Or Touch Screen | Language: | English Or Customized |
| Highlight: | 6000g Check Weigher Machine,6000g automatic checkweigher,6000g online checkweigher |
||
High Accuracy Check Weigher Machine In Food Industry , Single Phase 220V
Introduction
SCW-A type Check Weigher
12 inch color touch screen PC controller
Monitor
12-inch touch screen, easy to operate
Graphs show data analysis
Product setup and calibration
Distributed guided operating instructions for easy operation
Graphical display of weighing data
Product feature self-learning function
Product switching
Two-step quick product selection
Large product storage function
Automatic belt speed adjustment
Diagnosis & Alarm
Universal self-diagnostic tool
Programmable alarm output settings
Data & Security
Product data classification analysis by shift, day, month, year or product name
Multi-level password protection
SSCW-B Type Checker Weigher- 6 inch LCD controller
Main features
6-inch graphic LCD display with touch keypad
Easy product setting and calibration
Fast product switching
Self-diagnostic function
Comprehensive statistical functions
Multi-level password protection
Flexible alarm output configuration
SCW-C Type Check Weigher
Weight and metal double detection
Metal detection only for combi equipment, iron, non-ferrous, stainless steel
Metal detection capabilities vary by product
Weight Checking Machine Features
1. High speed, high sensitivity, high stability dynamic weight checking
2. Accurate and efficient rejector system
3. Professional human-machine interface design
4. User-friendly features
5. Top-level craft, professional mechanical design
6. Good environmental adaptability and stability
Technical Parameters
| Model | SCW06A/B/C | SCW20A/B/C | SCW30A/B/C | SCW60A/B/C |
| Scope | 6g-600g | 50g-2000g | 100g-3000g | 100g-6000g |
| Accuracy | ±0.4g | ±0.5g | ±1g | ±4g |
| Max. throughput | 200 ppm | 150 ppm | 120 ppm | 60 ppm |
| Belt Length(mm) | 220,300 | 300,400 | 400,500 | 600,800 |
| Belt Width(mm) | 150,200 | 200,250 | 250,300 | 400,500 |
| Table Height(mm) | 600-1000 | 600-1000 | 600-1000 | 600-1000 |

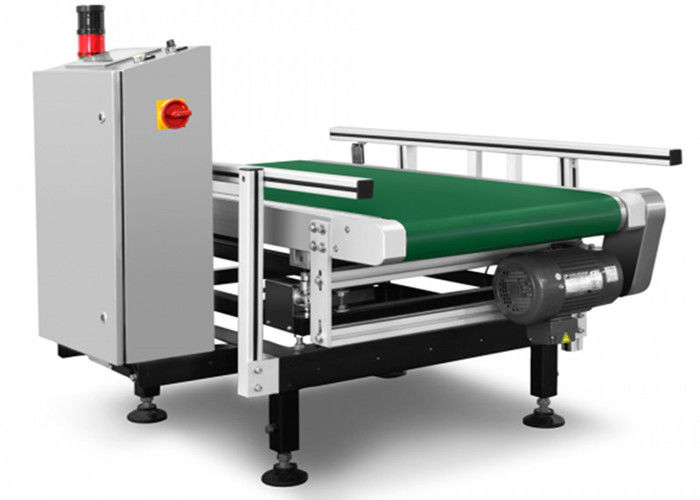

Machine Details
Machine Parts List
| NO. | Part | Brand | Material |
| 1 | Motor | Chengbang Motor | Aluminium alloy (shell) |
| 2 | Square Roller | 60x60mm | Cast Steel Galvanization |
| 3 | Bearing Block | LK | cast iron |
| 4 | Cylinder | Airtac | Aluminium alloy cylinder |
| 5 | Electromagnetic Valve | Airtac | / |
| 6 | Outrigger | 80x40mm | Carbon Steel Spraying |
| 7 | Beam | Thickness:8mm | Carbon Steel Spraying |
| 8 | Guardrail | Thickness:1.5mm | Stainless Steel |
Our Advantages
1. The machine operation interface is simple: only need to set the product parameters after receiving the machine, press the start button. No other machine parameters need to be reset.
2. Self-diagnosis function: the machine can detect the fault by itself and prompt.
3. Possess core technology.
4. Delivery time 5-7 working days.
5. Low failure rate.
6. Strong durability.
7. Attached machine installation tools and wearing parts (for example: motor belt)
8. There are many successful cases in the industry: (you can contact our sales staff at any time to request the machine work video)

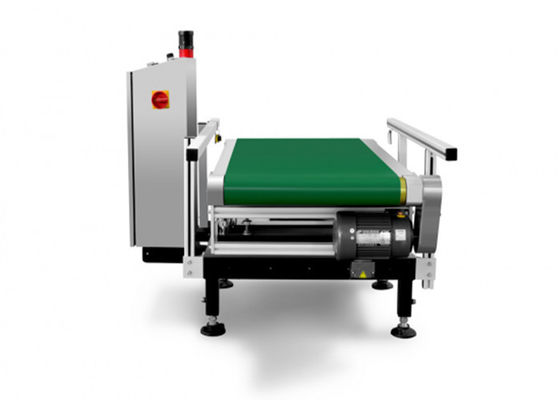

Machine Details
FAQ
Q: How to select the suitable weight checking machine type for your product:
A: Please contact with our people and tell us information: your product sizes(L*W*H), product weighing range(min and max weight), speed(how many bags per hour), rejector needed or not so that we can select the best suitable check weigher for you.
Q: Are you manufacturer or trader? Where are your factory located?
A: We are manufacturer and we are located in Hefei city, Anhui, China.
Q: What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
A: Sea shipping, air Shipping, and international express. And after confirming your order, we would keep you updated of production details of emails and photos.
Q: How long is your warranty?
A: 12 months free warranty, life-long maintenance.
Q: Are you provide product metal parts and provide us technical guidance?
A: Wearing parts, for example, motor belt, Disassembly tool(free) are what we could provide, and we can give you technical guidance.
Q: What are your company requests of payment terms?
A: TT, L/C etc.
Q: What is the validity time of the quotation?
A: 15 days since quotation date
